OpenStackClient Authentication via Environment Variables

For OpenStackClient to manage your cloud infrastructure, you must obtain authentication data and set it in environment variables. Below we show how to do this on Windows, Linux, and macOS, including how to save a local authentication script.

⚠️ Important: Storing a password in scripts or the command history can lead to compromise. For security, use interactive password input (see examples below).

Prerequisites

You must have an account in the SMCloud Customer Portal. For how to register an account, see the guide: “Creating an Account”.
You must order the “Cloud Infrastructure” service and receive a message that it is ready—either to the email address linked to your account or in the SMCloud Customer Portal.
Python and OpenStackClient must be installed according to the guide: “Installing OpenStackClient”.

I. Retrieving the Password from the Service Management Panel

The password for authentication is stored in the SMCloud Cloud Infrastructure management panel. To retrieve it, do the following:

Sign in to the SMCloud Control Panel. For how to do this, see:
1. If 2FA is not used, see “Signing in to the Control Panel”.
2. If 2FA is enabled, see “2FA Signing in to the Control Panel”.

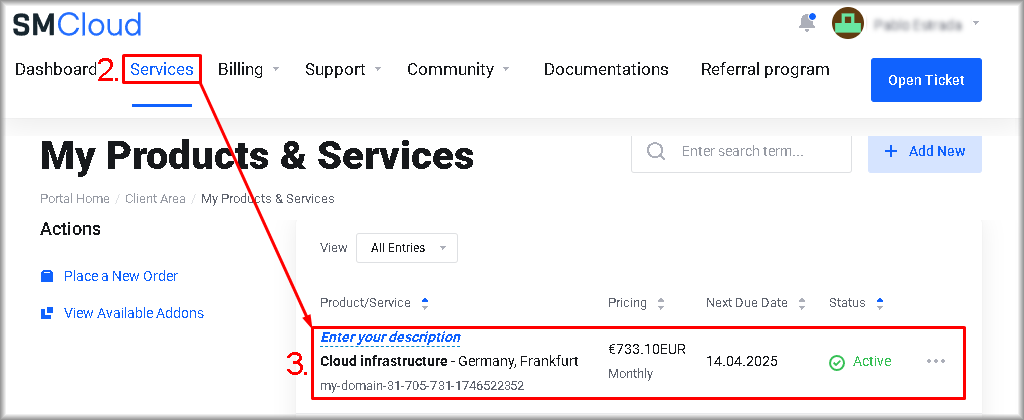

Select the main menu item “Services”.
You will be taken to the “My Products & Services” page.
Select the cloud infrastructure for which authentication is required.

You will be taken to the “Cloud Infrastructure” service management panel.

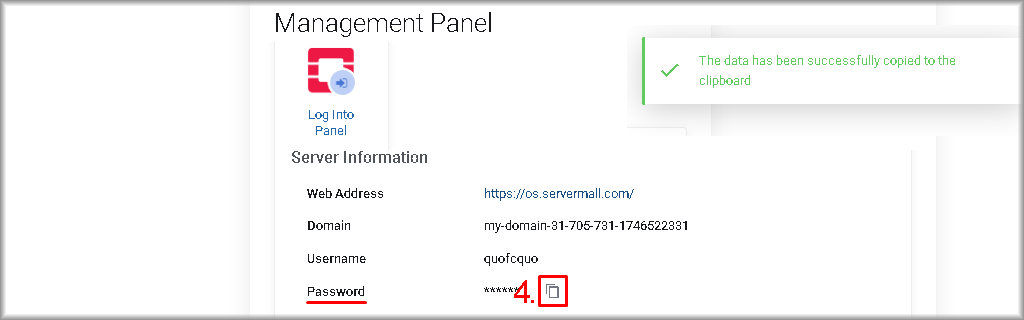

In the “Management Panel” section, click the “Click to copy” button (with the icon showing two sheets of paper) located on the “Password” line.

The authentication password will be copied to the clipboard, as indicated by the message “The data has been successfully copied to the clipboard”.

II. Obtaining the OpenRC File

You can download the OpenRC file from the cloud infrastructure management panel (cloud console) by performing the following steps:

Sign in to the Cloud Infrastructure Control Panel. For how to do this, see the guide: “Logging in to the Cloud Infrastructure Control Panel”.

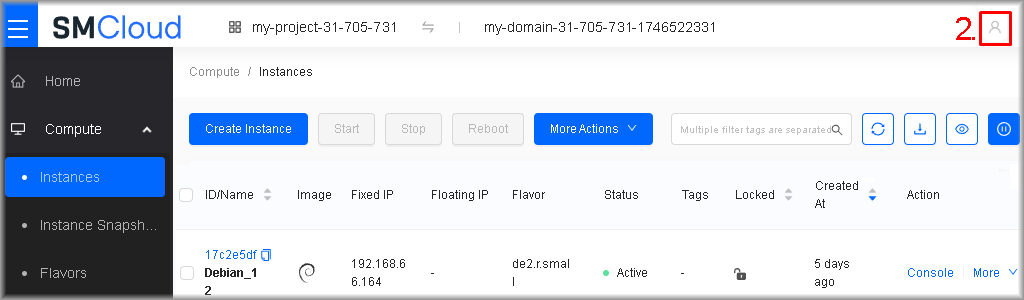

Click the user menu located in the upper-right corner of the panel.

A drop-down menu of user actions will open.

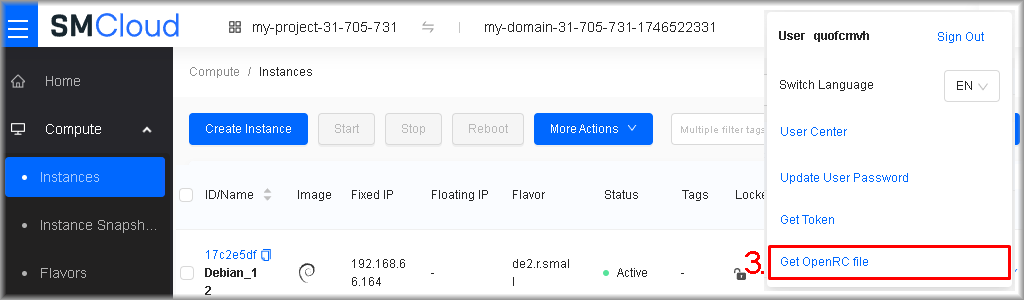

Select “Get OpenRC file”.

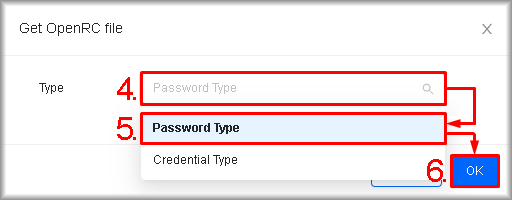

Click the “Type” field to open the list.
Choose “Password Type”.
Click “OK”.

A dialog will open to save the OpenRC file.
Save the OpenRC file locally.

III. Authenticating from Windows

To authenticate to the cloud infrastructure, you must set Windows environment variables.

Below we cover how to create a script to set environment parameters using PowerShell, CMD, and Git Bash, and also show how to quickly clear variables in the current session — for example, if you need to switch to another cloud infrastructure.

Authentication with PowerShell

We will create a script that specifies all the required data for authentication, including either storing the password or prompting the user for it.

Creating the script

Create the script file
Create a file with the *.ps1 extension to hold your environment variables. For example: os_auth.ps1.

Define the script structure
Copy the following content into the file you created:

 $env:OS_AUTH_URL="https://cli.pbcloud.services:5000/v3/"
$env:OS_USERNAME="<OS_USERNAME>"
$env:OS_PROJECT_ID="<OS_PROJECT_ID>"
$env:OS_PROJECT_DOMAIN_NAME="<OS_PROJECT_DOMAIN_NAME>"
$env:OS_USER_DOMAIN_NAME="<OS_USER_DOMAIN_NAME>"
$env:OS_REGION_NAME="RegionOne"
$env:OS_INTERFACE="public"
$env:OS_IDENTITY_API_VERSION=3

Fill in the values from the RC file
Replace the placeholders in angle brackets <…> with actual values for your project from the RC file obtained earlier in Section II — omitting the angle brackets themselves — for the following parameters: <OS_USERNAME>, <OS_PROJECT_ID>, <OS_PROJECT_DOMAIN_NAME>, <OS_USER_DOMAIN_NAME>.

An example of the filled-in script might look like this:
```
 $env:OS_AUTH_URL="https://cli.pbcloud.services:5000/v3/"
$env:OS_USERNAME="wuofcwvh"
$env:OS_PROJECT_ID="f805701a98324d3398b5365707e2fd4c"
$env:OS_PROJECT_DOMAIN_NAME="my-domain-31-715-725-1746533363"
$env:OS_USER_DOMAIN_NAME="my-domain-31-715-725-1746533363"
$env:OS_REGION_NAME="RegionOne"
$env:OS_INTERFACE="public"
$env:OS_IDENTITY_API_VERSION=3
```

Choose how to obtain the password
If you want to store the cloud infrastructure password in the script, add the line:
```
 $env:OS_PASSWORD = "<OS_PASSWORD>"
```
where <OS_PASSWORD> is the cloud infrastructure password you obtained in Section I, “Retrieving the Password from the Service Management Panel.”

However, you must ensure the script is not accessible to unauthorized persons, as it will contain data sufficient to connect to and manage your cloud infrastructure.

A more secure approach is to prompt for the password each time you configure the environment variables. To implement this, instead of hardcoding the password, add the following code to the script:
```
 $pass = Read-Host -AsSecureString "OpenStack password"
$BSTR = [Runtime.InteropServices.Marshal]::SecureStringToBSTR($pass)
try {
  $plain = [Runtime.InteropServices.Marshal]::PtrToStringAuto($BSTR)
} finally {
  [Runtime.InteropServices.Marshal]::ZeroFreeBSTR($BSTR)
}
$env:OS_PASSWORD = $plain
```
This code prompts the user for the cloud password and stores it in environment variables for the current session only; the password is not saved locally.

Using the script

Allow local scripts to run
If necessary, allow scripts created locally (on this system) by running:
```
 Set-ExecutionPolicy -Scope Process -ExecutionPolicy RemoteSigned
```
When prompted “Do you want to change the execution policy?” press Y to allow running local scripts, then press Enter.

Local scripts can now run without a signature, while those downloaded from the internet must be signed by a trusted publisher (otherwise PowerShell will block them). This command applies only to the current session; if you close the PowerShell window, the permission is revoked.
Run the script
Launch the authentication script in PowerShell. For example, if os_auth.ps1 is in the current directory:
```
 .\os_auth.ps1
```
he script will set environment variables for authenticating to the cloud infrastructure via OpenStackClient.

Clearing environment variables in the current session

If you need to clear environment variables in the current session—for security or to switch to another cloud infrastructure—run the following in PowerShell:

 # Remove all environment variables starting with "OS_"
Get-ChildItem Env:OS_* | Remove-Item

# Clear variables used for storing the password (if SecureString was used)
if ($pass -ne $null) { $pass = $null }
if ($plain -ne $null) { $plain = $null }

This removes all environment variables with the OS_ prefix and zeros out any temporary variables used to hold the password.

Authentication via CMD

We will create a script for the Windows command line (CMD.EXE) that sets all required authentication data, either storing the password or prompting the user.

Creating the script

Create the script
Create a file with the *.cmd extension to hold your environment variables. For example: os_auth.cmd.

Define the script structure
Copy the following into the newly created file:

 @echo off
set "OS_AUTH_URL=https://cli.pbcloud.services:5000/v3/"
set "OS_USERNAME=<OS_USERNAME>"
set "OS_PROJECT_ID=<OS_PROJECT_ID>"
set "OS_PROJECT_DOMAIN_NAME=<OS_PROJECT_DOMAIN_NAME>"
set "OS_USER_DOMAIN_NAME=<OS_USER_DOMAIN_NAME>"
set "OS_REGION_NAME=RegionOne"
set "OS_INTERFACE=public"
set "OS_IDENTITY_API_VERSION=3"

If you want environment variables to persist in the registry for future sessions, use setx instead of set. However, saving the password with setx is not recommended for security and is acceptable only for test and training scenarios.

Fill in the values from the RC file
Replace the placeholder values in angle brackets <…> with the actual values for your project from the RC file obtained earlier in Section II, excluding the brackets themselves, for the following parameters: <OS_USERNAME>, <OS_ROJECT_ID>, <OS_PROJECT_DOMAIN_NAME>, <OS_USER_DOMAIN_NAME>.

An example of the filled-in script might look like this:
```
 @echo off
set "OS_AUTH_URL=https://cli.pbcloud.services:5000/v3/"
set "OS_USERNAME=wuofcwvh"
set "OS_PROJECT_ID=f805701a98324d3398b5365707e2fd4c"
set "OS_PROJECT_DOMAIN_NAME=my-domain-31-715-725-1746533363"
set "OS_USER_DOMAIN_NAME=my-domain-31-715-725-1746533363"
set "OS_REGION_NAME=RegionOne"
set "OS_INTERFACE=public"
set "OS_IDENTITY_API_VERSION=3"
```

Choose how to obtain the password
If you want to store the cloud infrastructure password in the script, add:
```
 set "OS_PASSWORD=<OS_PASSWORD>"
```
where <OS_PASSWORD> is the cloud password you obtained in Section I.“Retrieving the Password from the Service Management Panel”.

However, you must ensure the script is not accessible to unauthorized persons, since it will contain all data necessary to connect to and manage your cloud infrastructure.

A more secure method is to prompt for the password each time you set up the environment variables. To implement this, instead of hardcoding the password, add:
```
 set /p OS_PASSWORD=OpenStack password:
```
This line prompts the user for the password (input will be visible) for cloud authentication and sets it as an environment variable for the current session only, without saving it to disk.

Using the script

Run the authentication script in CMD (Command Prompt). For example, if os_auth.cmd is in the current directory:

 call os_auth.cmd

The script will set environment variables for authenticating to the cloud infrastructure via OpenStackClient.

Clearing environment variables in the current session

If you need to clear environment variables in the current session—for security or to authenticate against another cloud infrastructure—run the following in CMD:

 for /f "tokens=1 delims==" %v in ('set OS_ 2^>nul') do set "%v="

All environment variables beginning with OS_ will be cleared.

Attention: Clearing environment variables does not guarantee complete removal of data from the OS memory. For maximum security, restart the console/terminal session after working with sensitive data.

Authentication via Git for Windows (Git Bash)

If Git Bash is installed on your system, you can use it to authenticate to and manage your cloud infrastructure.

Start Git Bash
All subsequent operations will be performed in the Git Bash terminal.
Find the path to openstack.exe
Git Bash does not always have the same PATHs as Windows, particularly the folder containing Python scripts and OpenStackClient. Find this path:
```
 /c/Windows/System32/where.exe openstack.exe
```
Example output:
```
 C:\Users\testuser\AppData\Local\Programs\Python\Python313\Scripts\openstack.exe
```
If the command returns no path, ensure OpenStackClient is installed correctly per “Installing OpenStackClient”.

Add the obtained path to Git Bash PATH
Add the following block in Git Bash, replacing <Path_to_scripts> with the path from the previous step, but without the openstack.exe filename and with an additional backslash (\) at the end:

 # Insert the Windows path to the scripts folder in place of <Path_to_scripts> (without openstack.exe at the end and with ‘\’ added)
win_path="<Path_to_scripts>"

# Convert the Windows path to Unix form for Git Bash
unix_path=$(cygpath -u "$win_path")

# Add the Unix-form path to PATH
echo "export PATH=\"$unix_path:\$PATH\"" >> ~/.bashrc

# Apply the changes to the current session
source ~/.bashrc

The result may look like this, for example:


win_path="C:\Users\testuser\AppData\Local\Programs\Python\Python313\Scripts\\"
unix_path=$(cygpath -u "$win_path")
echo "export PATH=\"$unix_path:\$PATH\"" >> ~/.bashrc
source ~/.bashrc

After running the above commands, verify success:
openstack --version

If you see the OpenStackClient version (for example, openstack 8.2.0), the path was added successfully, and it will be available automatically the next time you launch Git Bash.

Run the OpenRC file
To run the script, use:
```
 source <(tr -d '\r' < "")
```
where <path_and_name_of_RC_file> is the path to the RC file specified in Unix style (forward slashes instead of backslashes, and the drive letter — e.g., C: — is replaced with a prefix like /c/).

For example, if openrc.sh is in C:\downloads\, the command will be:
```
 source <(tr -d '\r' < "/c/downloads/openrc.sh")
```
This command runs openrc.sh, which will prompt the user for the cloud password and set environment variables for authentication.

Enter the password
When you see a message like: “Please enter your OpenStack Password for project <PROJECT> as user <USER>”, enter the cloud password obtained in Section “I. Retrieving the Password from the Service Management Panel”.

If for some reason the password was not requested, was entered incorrectly, or you skipped it, set the password manually:
```
 read -rsp "OpenStack password: " OS_PASSWORD; echo; export OS_PASSWORD
```

Verify authorization
```
 openstack token issue
```
If authorization succeeds, information about the generated authentication token will be displayed.

Done
You can now manage the cloud through OpenStackClient from the Git Bash console.

Note: After closing Git Bash, the authentication session (environment variables from OpenRC) is reset. To re-authenticate, run openrc.sh again (see step 4). The PATH entry remains—it is saved in ~/.bashrc.

IV. Authenticating from Linux and macOS

To set environment variables for OpenStackClient, you need to run openrc.sh. The procedure for obtaining it is shown in Section II. “Obtaining the OpenRC File”.

Run the RC file
Use a command of the form:
```
 source <path>/openrc.sh
```
where is the <path> to openrc.sh.

For example, if openrc.sh is in the current directory:
```
 source openrc.sh
```
Or, if openrc.sh is in /home/ubuntu/:
```
 source /home/ubuntu/openrc.sh
```
The script will set environment variables for authentication to the cloud infrastructure and will prompt for its password.

Enter the password
When you see a message like: “Please enter your OpenStack Password for project <PROJECT> as user <USER>”, enter the cloud password obtained in Section “I. Retrieving the Password from the Service Management Panel”.

If for some reason the password was not requested, was entered incorrectly, or you skipped it, set it manually:These commands prompt for the password and save it in an environment variable for subsequent authentication.
- bash (Linux/macOS):
```
 read -rsp "OpenStack password: " OS_PASSWORD; echo; export OS_PASSWORD
```
- zsh (default on macOS):
```
 read -rs "?OpenStack password: " OS_PASSWORD; echo; export OS_PASSWORD
```

Verify authorization
```
 openstack token issue
```
If authorization succeeds, information about the generated authentication token will be displayed.

Done
You can now manage the cloud from the terminal.

Note: Environment variables set via source openrc.sh are effective only for the current terminal session and are reset after it is closed. To re-authenticate, perform step 1 again (run openrc.sh).

What’s next?

After you authenticate successfully, you can fully manage your cloud infrastructure: create, change, and delete resources, set up networks and security policies, monitor service status, and more.

Where to find the commands:

Commands for getting summary information about your project’s resources and the cloud status are in the ”OpenStack CLI commands for collecting information about OpenStack project resources“ subsection.
Detailed CLI commands for specific resource types are in the relevant subsections of the “Cloud Infrastructure“ section.
